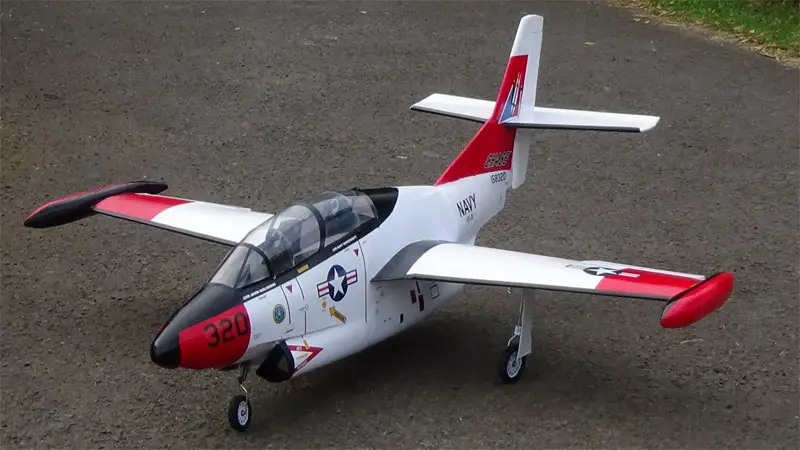

I already put an eye on this beauty, the T-2 Buckeye for quite sometime and now this time I share my build. This time I just want to make my dream jet, not to bother to simplify the shape, no detachable wing, no easy build, I just want to have her and fly it. I'm not expecting you to build this like any my other models, but if you want to this is a good flyer. My plan was to equipped this RC model jet with mechanical retractable landing gear or servo driven. But in a test, both had problem on the servo, I use plastic gear servo, maybe I should use metal gear servo. Finally I replace the main landing gear with servoless retract and problem is gone. Like usual I use pusher prop with NTM 2830 1000kv 370 watts motor, the same motor I use for Boeing 737-300. I also use the same prop 8x6x4 but with 4S battery. The prop specification is above recommendation but with 370 watt and soft blade I think it can manage. She can short take off and shoot the sky like on a rail. The landing is also easy, I am happy with the result.
Specs :
1. Wingspan 1300 mm
2. Flying weight : 1400 grams/ 49.4 oz
3. Wing loading : 42.4 g/dm2 - 13.9 oz/sq.ft
4. Wing cube loading : 7.4
5. Wing Area : 33 dm2 / 512 sq.in

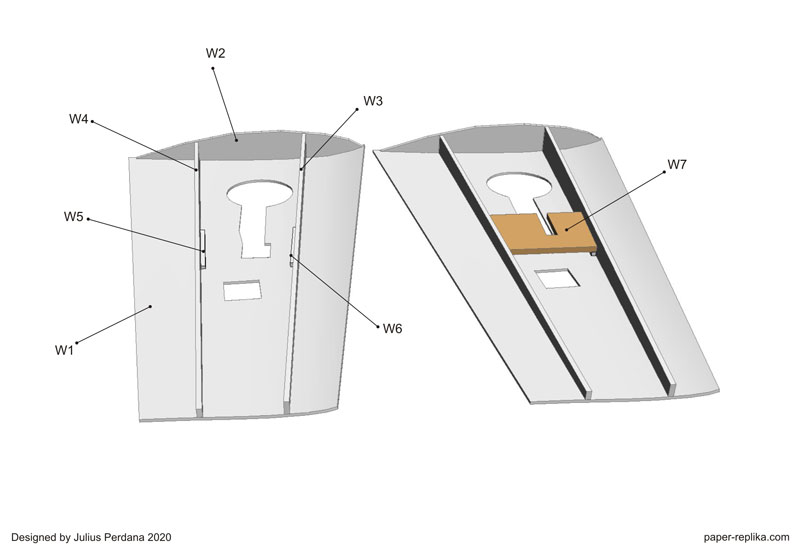

6. CG : 7.5 cm from LE (see wing plans)
Electronics
- NTM 28-30 1000kv 370 watt
- Propeller : 8x6x4
- ESC 50A
- Battery Lipo 4S 2200mah
- 4 plastic gear 9 gram servos
- 3 metal gear servo
- mechanical retract / servoless retract
Materials :
1. 3 mm Depron/ Polyfoam
2. 5 mm Depron/ Polyfoam
3. 7 mm + 3 mm Plywood
4. Hot glue, CA glue, PVA glue, Epoxy Glue
5. 3 mm bicycle wheel spoke wire
6. 1.5 mm wire
7. white packing tape / wax paper
8. chopsticks, toothpick
9. 10 mm EVA foam (black)
10. 0.3 mm Mica plastic
11. Plastic tray
Open the PDF file with Adobe Acrobat Reader (recommended software)
PDF security password : none
T-2 Buckeye RC plans (A4)
T-2 Buckeye RC plans (A0)
US NAVY 15830 Decal (A4)
US NAVY 15830 Decal (A3)

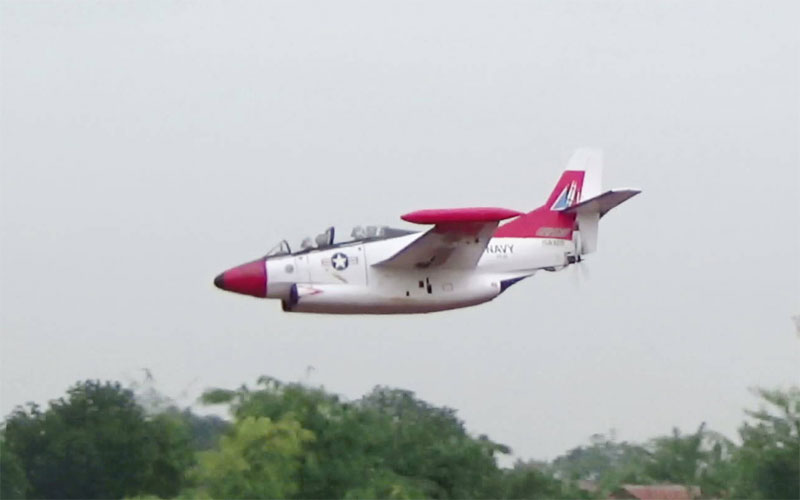

Build Video and maiden flight on Youtube
