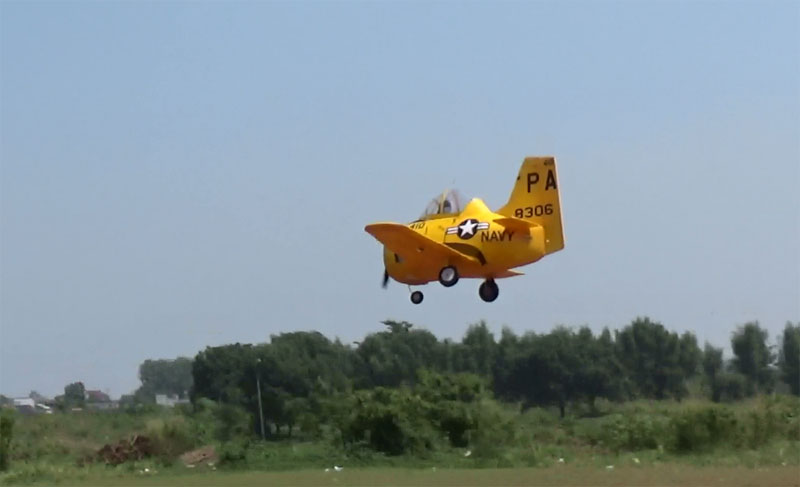

Sometime ago there was a comment in one of my videos about request a cartoon style of fatty RC plane, but that time I was not interested for making that type of model, because I like scale model. Then about a month ago my friend brought his fatty RC plane on the field. When I looked at that plane I thought it's a challenge for me, so here it is I made a 1000mm cartoon RC plane, the model is T-28 Trojan. The model is entirely made from 3mm polyfoam or depron foam with 5mm foam for formers and spars. This cartoon plane can fly with sufficient power plant, after under powered on maiden flight I will test fly it again on this weekend with bigger prop and motor.





Specs :
1. Wingspan 1000 mm
2. Flying weight : 995 grams/ 35.1 oz
3. Wing loading : 45.2 g/dm2 - 14.8 oz/sq.ft
4. Wing cube loading : 9.6
5. Wing Area : 22 dm2 / 341 sq.in

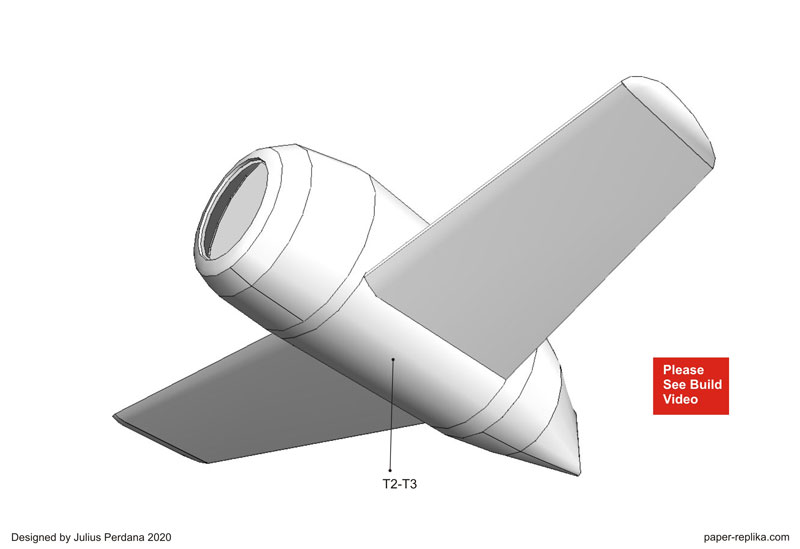

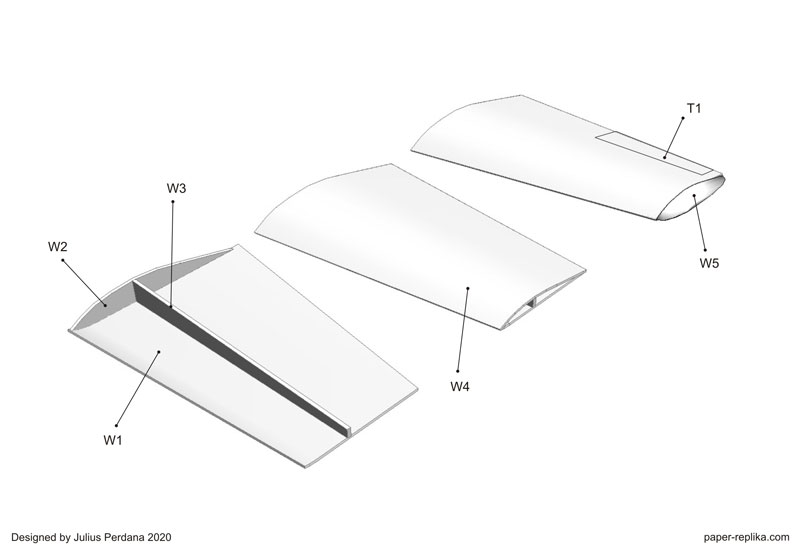

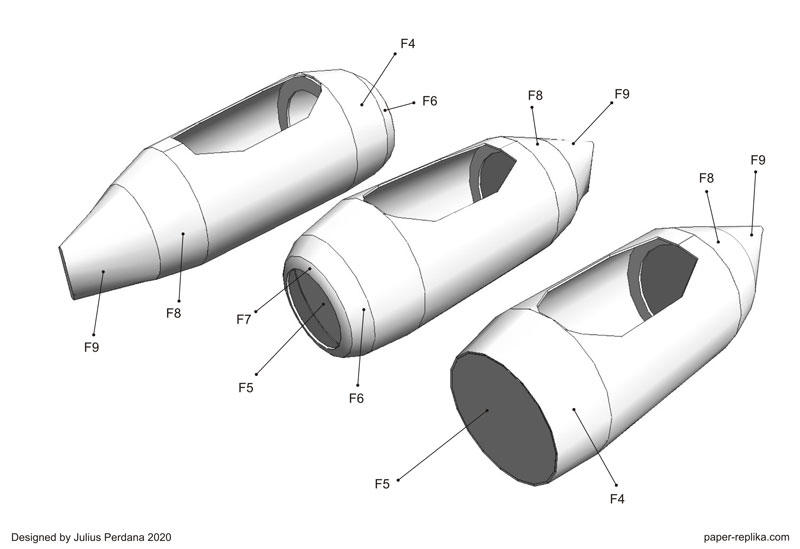

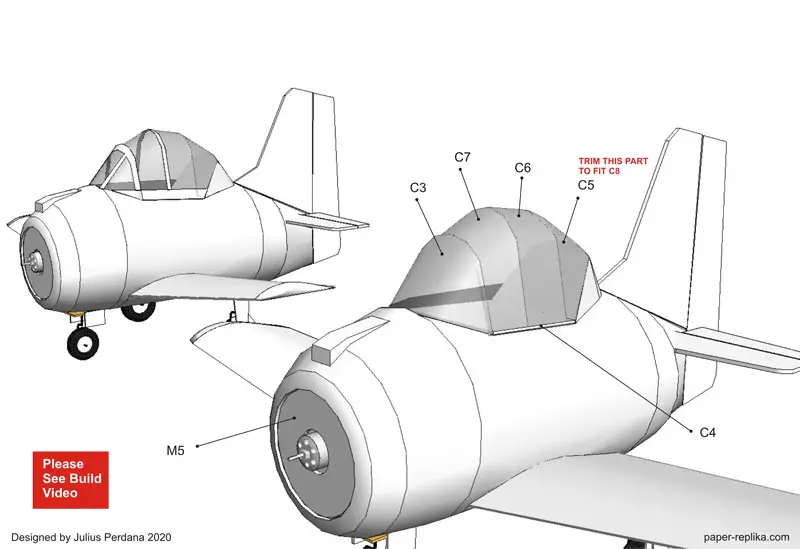

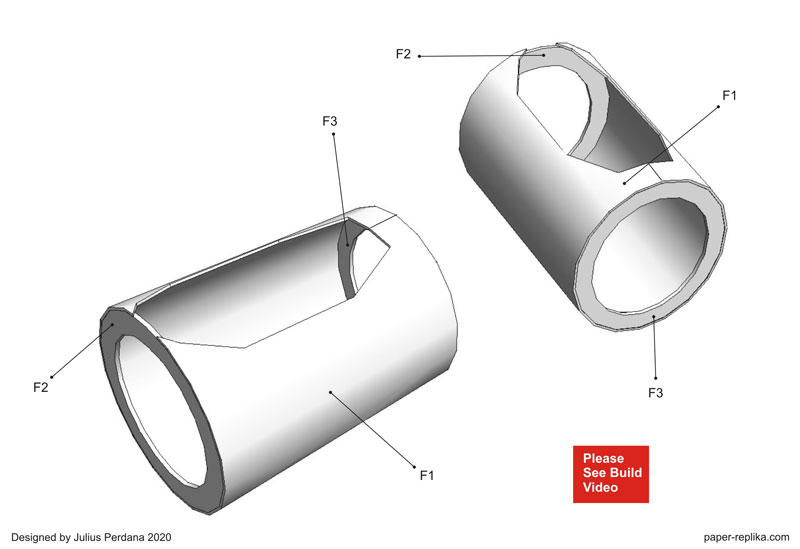

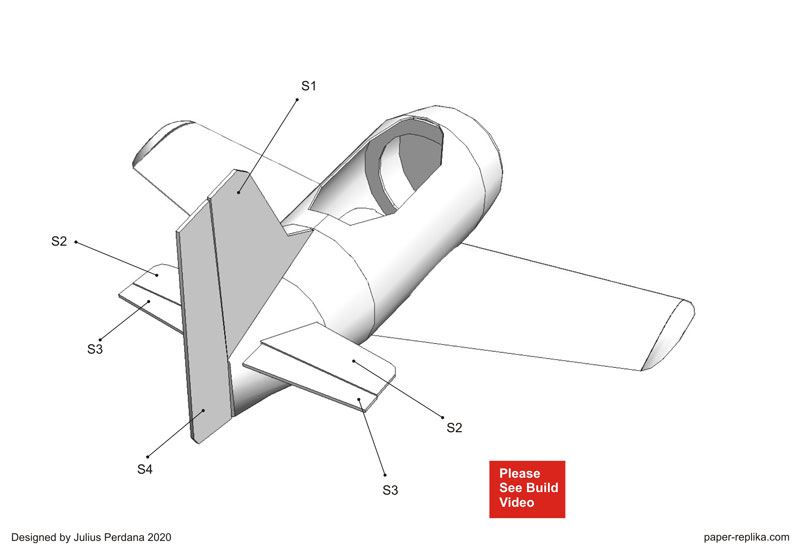

6. CG (see build instructions)

Electronics

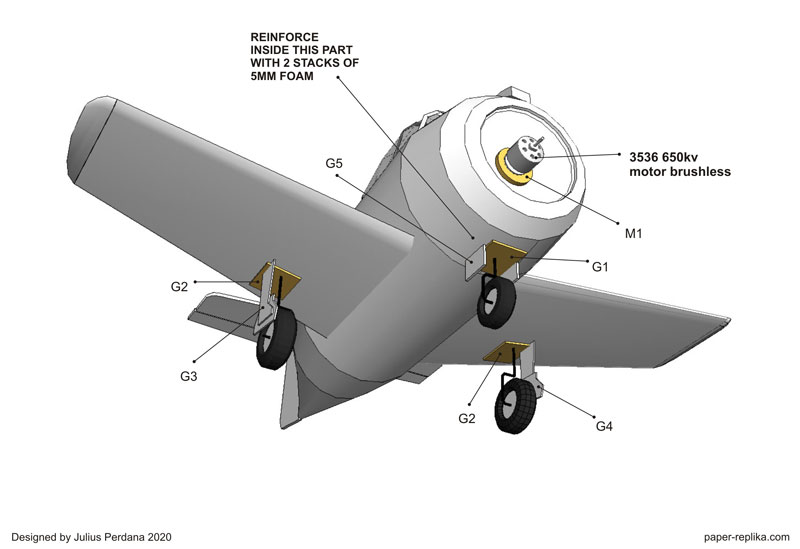

- Turnigy 3536 650kv
- Propeller : 11x6x3
- ESC 50A
- Battery Lipo 3S 2200mah

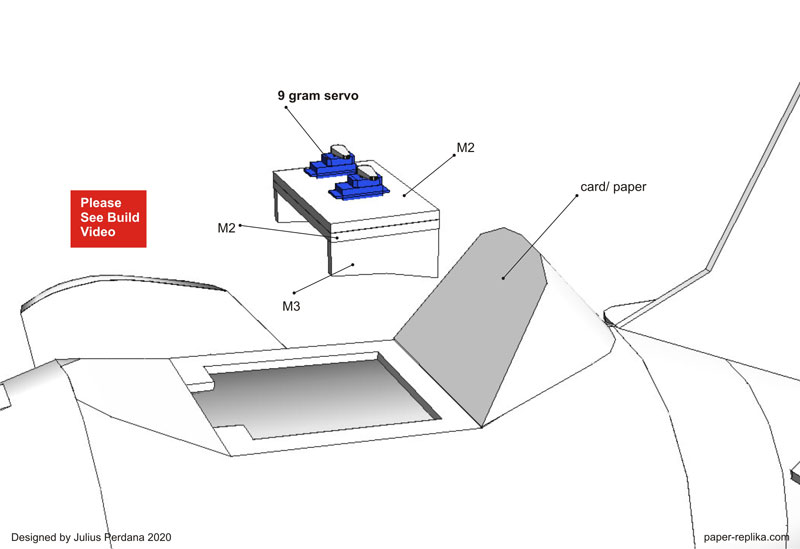

- 4 plastic gear 9 gram servos

Materials :
1. 3 mm Depron/ Polyfoam
2. 5 mm Depron/ Polyfoam
3. 7 mm + 3 mm  Plywood
4. Hot glue, CA glue, PVA glue
5. 3 mm bicycle wheel spoke wire
6. 1.5 mm wire
7. white packing tape / wax paper
8. Small bamboo stick
9. 0.3 mm Mica plastic
