In support of Anakin and Obi-Wan in the Battle of Coruscant, the two Jedi are escorted by a squadron of ARC-170 fighters (aggressive reconnaissance fighters). Absolutely loyal to the Republic, the clone pilots have the mission of diverting the Trade Federations fighters and clearing the way for the Jedi. With the inbred obedience that they received in the Kaminoan breeding station, these brave fighters voluntarily sacrifice themselves, so that the Jedi can fulfill their mission. However, the clone pilots also have access to the skills of the bounty hunter Jango Fett and place themselves in the path of the enemy undaunted by death. The reconnaissance fighter has a class 1.5 hyperdrive and carries torpedoes and laser cannons. It is therefore less manoeuvrable than the Jedi Starfighter and the fate of the ARC-170 is decided solely by the know-how of the three-man crew..[revell]

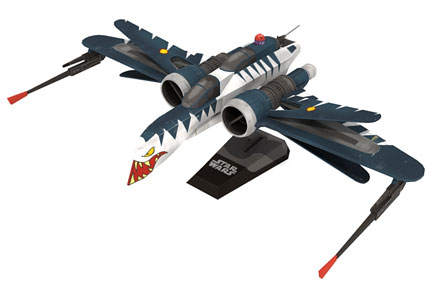

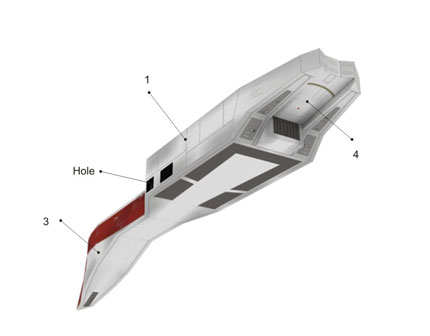

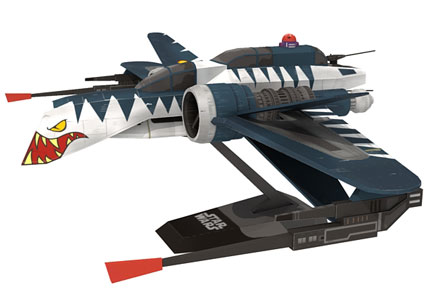

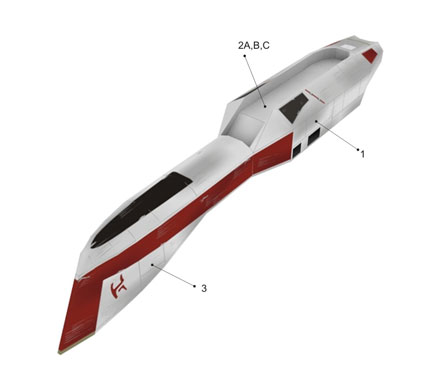

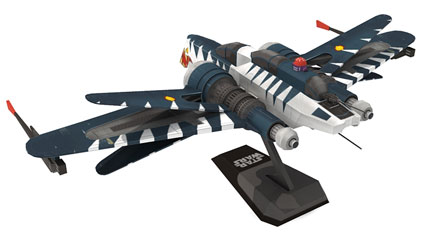

Main Body Parts number : 1,2,3
- Part number two are separated into 3 parts 2A,B & C
- Don't forget to cutout 4 holes on part number 1, the ones with asterisk symbols
- Beak like nose is part number 3
Main Body Parts number : 1,2,3,4
- Assembly part number 4 in the bottom of the tail
Main Body Parts number : 8,9,10,11,12
- Part number 8 separated in 2 parts, 8A & 8B. 8B is the one on the bottom

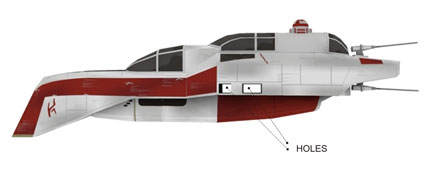

- Don't forget to cutout a hole on part number 12

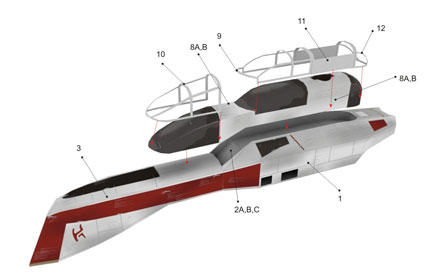

- Place the cockpit part (8A, 8B) on the fuselage
- Add the cockpit part with canopy frames (9,10,12)
- Add a layer (part number 11) in the fuselage

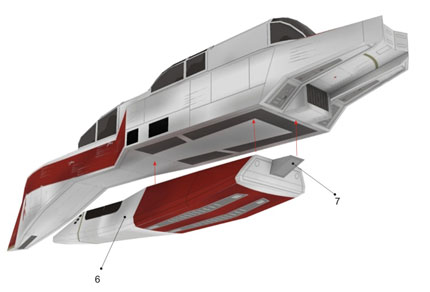

Main Body Parts number : 5A, 5B
- Add a layer (5A & 5B) on the bottom of the tail
Main Body Parts number : 7 & 8
- glue part number 8 and 7 on the bottom of the main body

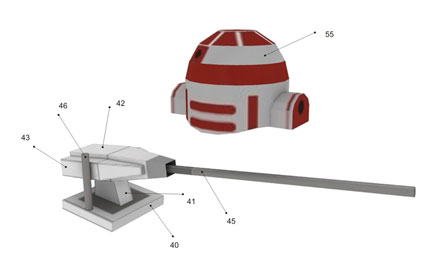

Main Body Parts number : 55, 40-46

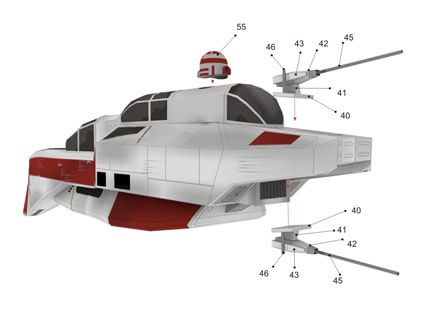

- Cannon parts are 40-46, one set on top and another on the bottom of the tail
- Part number 55 is an astrodroid, be careful when cutout because it’s tiny, they have no flaps
Main Body
- The holes are for joins socket for the engine

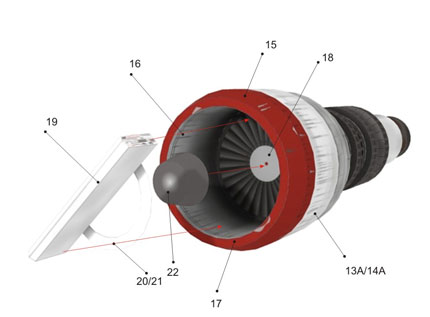

Engine : Parts number : 13-22
- There are 2 engines, so #13A is left and #14A is for right, or vice versa
- Add the cone blade (22) on the blade (18)
- Roll Part number 16 with the printed side inside
- Glue #19 & #20/21 first before add to the inside of the air intake
- Make a hole at number 17

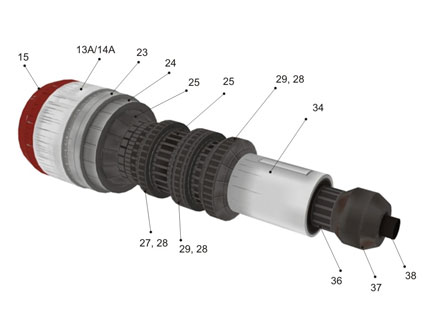

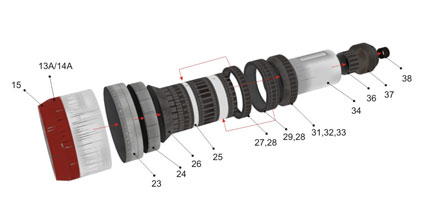

Engine : Parts number : 13-38
- Parts number 13,23,24 are each consisted with 2 parts
- Parts number 27-29 are rings for part number 25
- There are 8 parts of number 28. The same parts to assembled with number 27 & 29
Engine and Main Body Joins : Parts number : 64 & 65
- Insert parts number 64 & 65 both left and right in the holes of the main body until they close each other and glue them
Engine and Main Body Joins : Parts number : 64 & 65
- Assembly both engines with the main body

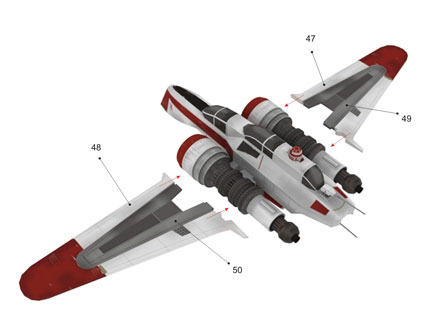

Main Wings : Parts number : 47-50
- Assembly both wings on the two engines, place them at the center vertically to the engine

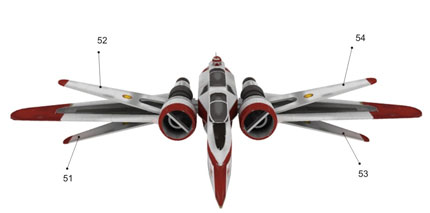

Additional Wings : Parts number : 51-54
- Assembly 4 additional wings with the both engines

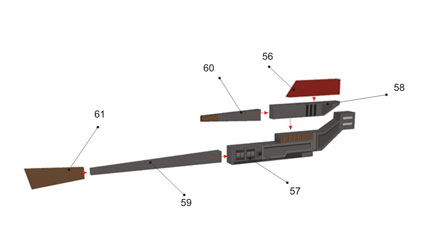

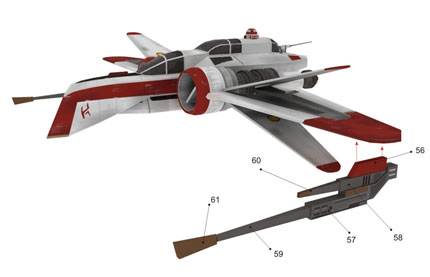

Main Cannons Parts number : 56-61
- Assembly the main cannons

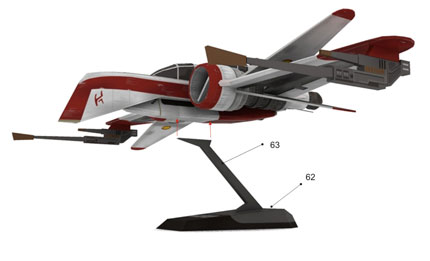

Display Stand Parts number : 62 & 63
- Assembly the display stand. You must figure out to place it on the center of the model gravity to insure it will sustain the model.
- Enjoy building! If you found errors or have difficulties don’t hesitate to contact me
