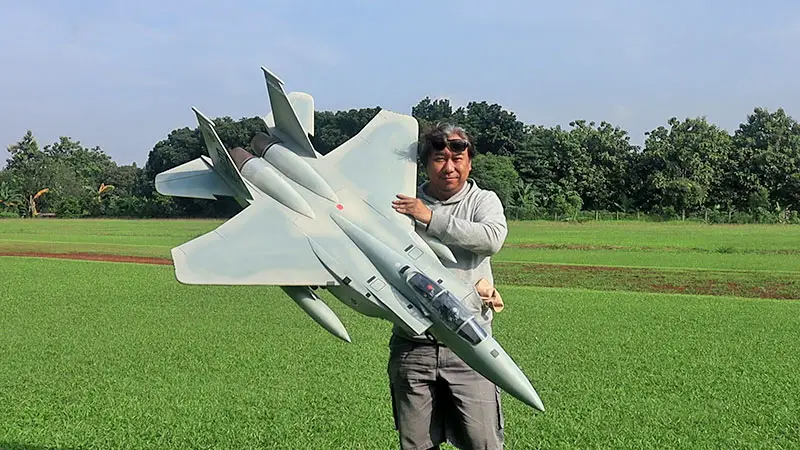

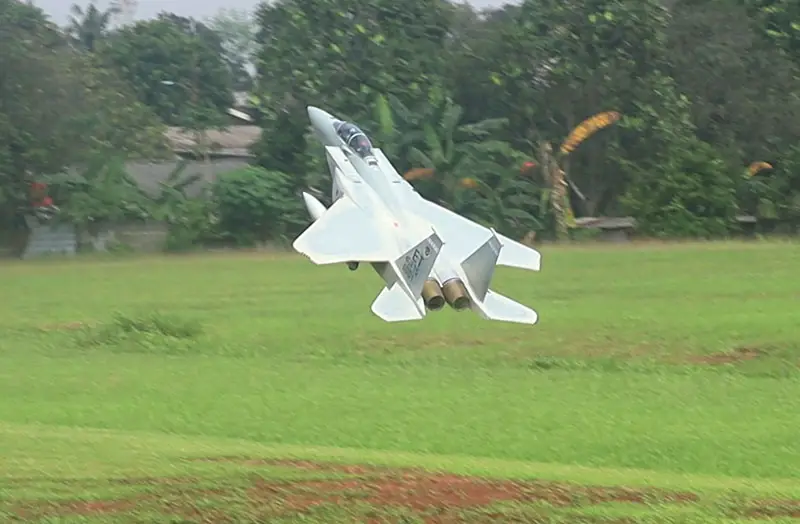

This is the first time I use twin EDF for fighter jet model. This F-15EX Eagle II RC model use twin 70mm EDF for the power plant.
I share all the plans and decal files on my website paper-replika.com, you can find the link to the build instructions page below. This model is simplified but still resemble the scale look of the F-15EX Eagle II on the top side, but the bottom side is very simple so the build process will not too hard. The model was build by my friend Roy with plans from me. The hardest part when building this model is on the nose section. The air intake comes in 2 different angles, so you may choose which one to make. Also the canopy has 2 version too, you can use segmented canopy or 2 piece of mica plastic molding.
2 EDFs makes it have a lot of power, so you need to reinforce all the stabilizers with 5mm carbon tube or fiber rod.
EDF Specs :
1. Wingspan 1150mm / 45.3 inches
2. Flying weight : 3200 grams/ 112.9 oz/ 7 lbs
3. Wing loading : 69.4 gram/dm2 - 22.7 oz/sq.ft.
4. Wing cube loading : 10.2 (Aerobatic)
5. Wing Area : 46.1 dm2 / 715 sq.in.
6. CG : 6.3 inch/ 16 cm from Leading Edge on
Wing Root
Electronics (pusher prop)
- DXW 3536 1200kv Brushless motor
- 11x5 prop
- 50A ESC
- 3-4S 2200mah Lipo Battery
Electronics (pusher prop) #2
- NTM 2700kv Brushless motor
- 7x5 prop
- 50A ESC
- 4S 2200mah Lipo Battery
Electronics (EDF)
- 2X FMS 70mm 12 blades 1900kv EDF
- 2X 80A ESC
- 1X 6S 5600mah Lipo Battery
- 4X Metal gear 9 gram servo (mini servo) for control surfaces
Transmitter
- Jumper T16 + BetaFPV Express LRS TX module
- 10 ch BetaFPV Express LRS RX
Materials :
1. 5mm Foamboard/ Depron/ Polyfoam
2. 10mm Carbon Tube/ Bamboo/ Wood Dowel 30 cm
2. 5mm Carbon Tube/ Bamboo/ Wood Dowel 40 cm
3. 0.5mm Mica Plastic
4. hot glue, UHU glue, CA glue, PVA glue
5. Packing tapes
BUILD INSTRUCTIONS :

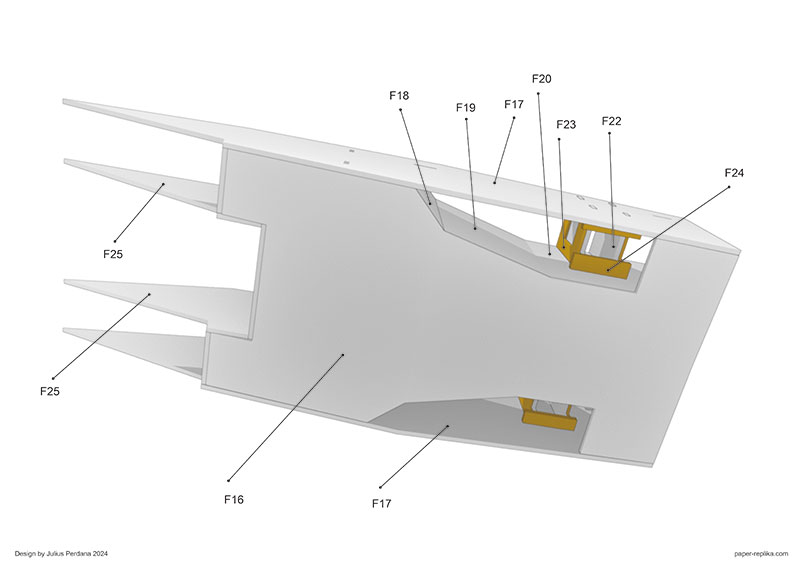

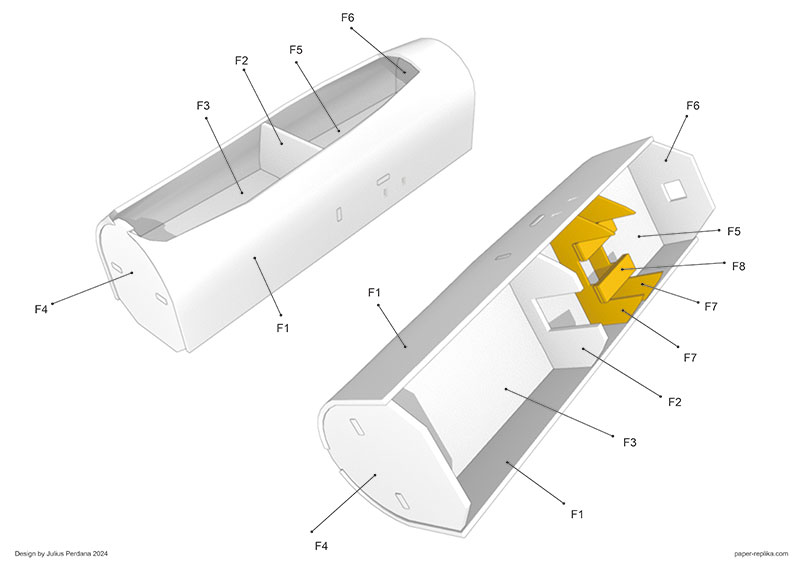

F-15EX Eagle II RC plans A0
F-15EX Eagle II RC plans A4
