Now I will build this giant Cessna Citation CJ1 RC plane. I will use 6mm foam board or Depron foam for the material and will test it with pusher prop configuration and also ducted fan (EDF) for more scale look, and also will try 3d printed retract landing gear for the first time.
The reason why I design the plans and build the RC plane is because of an event a "Homemade scale RC plane festival" that will be held on 20th January 2024. I don't have any big plane anymore my last big model C-130 was already sold. The announcement was on the middle of December, so I still have about a month to design the plans and build it. Like usual I use Blender to make the 3D model and then unfold each parts with Pepakura Designer into 2D plans. I use 6mm Depron foam or foam board or polyfoam for the main material, to assembly all the parts I use hot glue gun.
Pusher Prop Specs :
1. Wingspan 2200mm / 86.6 inches
2. Flying weight : 3100 grams/ 109.3 oz/ 6.8 lbs
3. Wing loading : 48.8 gram/dm2 - 16 oz/sq.ft.
4. Wing cube loading : 6.1 (Trainer)
5. Wing Area : 63.48 dm2 / 984 sq.in.
6. CG : 4.1 inch/ 10.5 cm from Leading Edge on
Wing Root
EDF Specs :
1. Wingspan 2200mm / 86.6 inches
2. Flying weight : 3470 grams/ 122.4 oz/ 7.68 lbs
3. Wing loading : 54.7 gram/dm2 - 17.9 oz/sq.ft.
4. Wing cube loading : 6.9 (Trainer)
5. Wing Area : 63.48 dm2 / 984 sq.in.
6. CG : 4.1 inch/ 10.5 cm from Leading Edge on
Wing Root
Electronics for test (pusher prop)
- 2X DXW 3536 1200kv Brushless motor
- 2X 8x6 3 Blades prop (Both CCW)
- 2X 50A ESC
- 2X 3S 2200mah Lipo Battery
- 6X Metal gear 9 gram servo (mini servo) for control surfaces + steering
- 2X Metal gear 9 gram servo (mini servo) for main gear retract
- 1X Standard servo for front landing gear retract
Electronics for test (EDF)
- 2X FMS 70mm 12 blades 1900kv EDF
- 2X 80A ESC
- 1X 6S 5600mah Lipo Battery
- 6X Metal gear 9 gram servo (mini servo) for control surfaces + steering
- 2X Metal gear 9 gram servo (mini servo) for main gear retract
- 1X Standard servo for front landing gear retract
Transmitter
- Jumper T16 + BetaFPV Express LRS TX module
- 10 ch BetaFPV Express LRS RX
Materials :
1. 5mm Foamboard/ Depron/ Polyfoam
2. 10mm Carbon Tube/ Bamboo/ Wood Dowel 30 cm
2. 5mm Carbon Tube/ Bamboo/ Wood Dowel 40 cm
3. 0.5mm Mica Plastic
4. hot glue, UHU glue, CA glue, PVA glue
5. Packing tapes

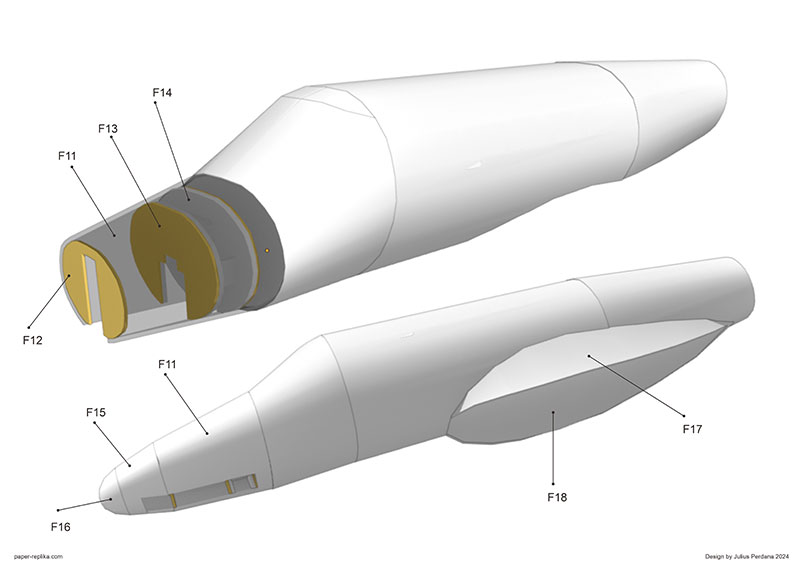

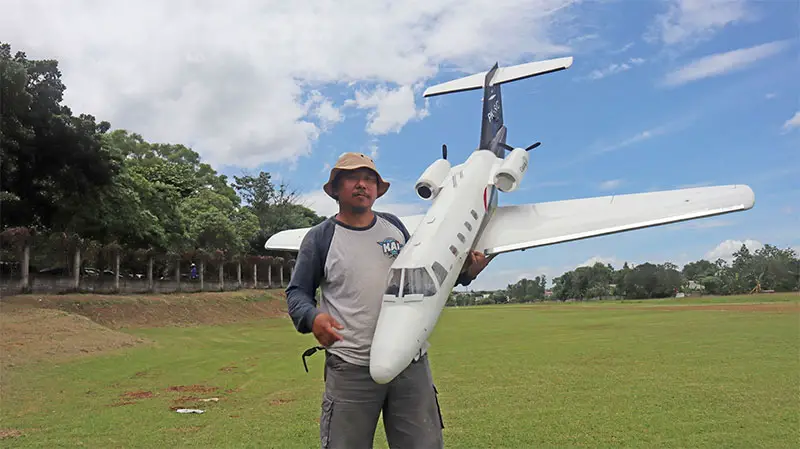

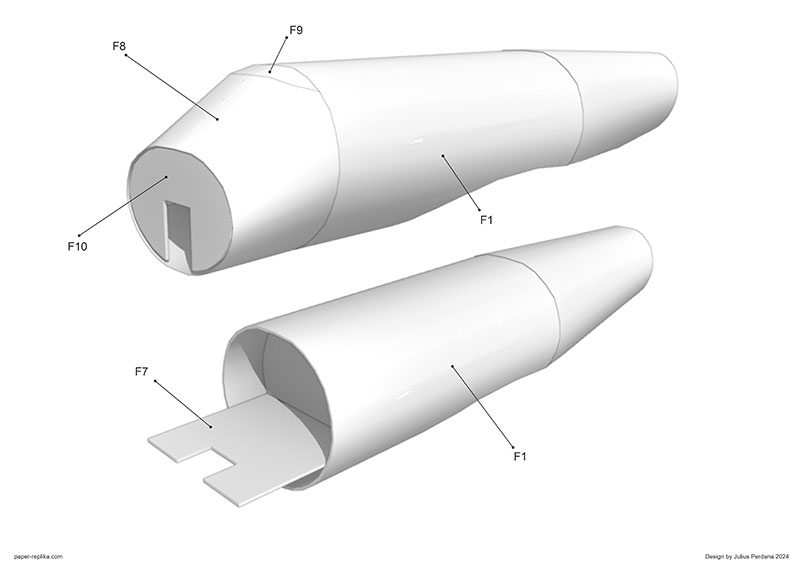

BUILD INSTRUCTIONS
Download :
1. Cessna Citation CJ1 A4 Plans (A4)
2. Cessna Citation CJ1 A0 Plans (A0)
3. Cessna Citation CJ1 Decal (A3)
