At last finally I build the F-14 Tomcat. I waited for it for so long, waiting to have enough experience on building an EDF jet fighter. As usual this jet model was built by my friend Roy by following my plans, and then sent to me like an empty canvas so I can paint it with VF-84 Jolly Rogers color scheme. This F-14 can move its variable sweep wing, but can it fly with wing swept back? Just watch it till the end on the build and fly video on my Youtube channel

Specs
1. Wingspan 1860mm / 73.2 inches
2. Flying weight : 3000 grams/ 105.8 oz/ 6.6 lbs
3. Wing loading : 46.9 gram/dm2 - 15.4 oz/sq.ft.
4. Wing cube loading : 5.9 (Trainer)
5. Wing Area : 63.95 dm2 / 991 sq.in.
6. CG : Check plans

Electronics
- 2X FMS 70mm 1900kv 12 blades EDF
- 2X Hobbywing 80A ESC
- 6S 5600mah Lipo Battery
- 4X 9 gram servo
- 2X Standard Servo 6.5kg torque

Transmitter
- Jumper T16 + BetaFPV Express LRS TX module
- 10 ch BetaFPV Express LRS RX
- Flight Stabilization (Gyro) A3V2

Materials :
1. 6mm  Foamboard/ Depron/ Polyfoam
2. Bamboo Chopstik
3. 5mm Carbon Tube/ Bamboo
4. 0.5mm Mica Plastic
5. hot glue, UHU glue, CA glue, PVA glue
6. Packing tapes

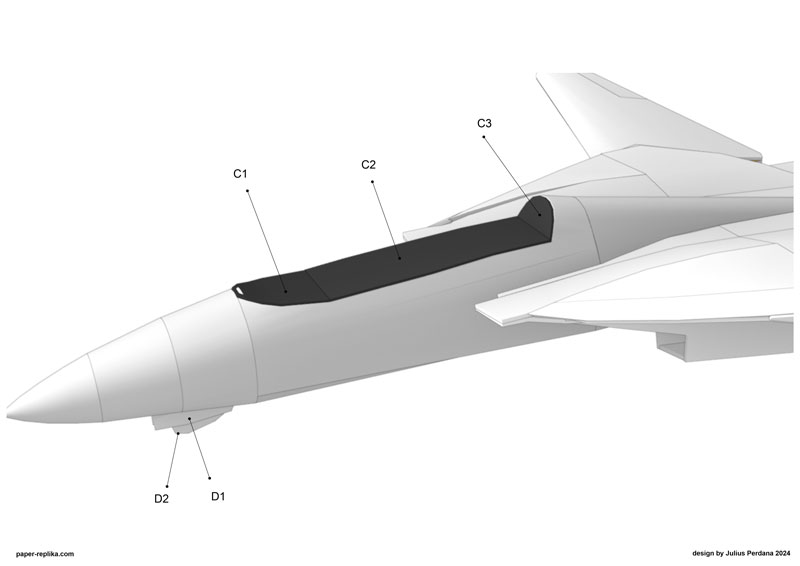

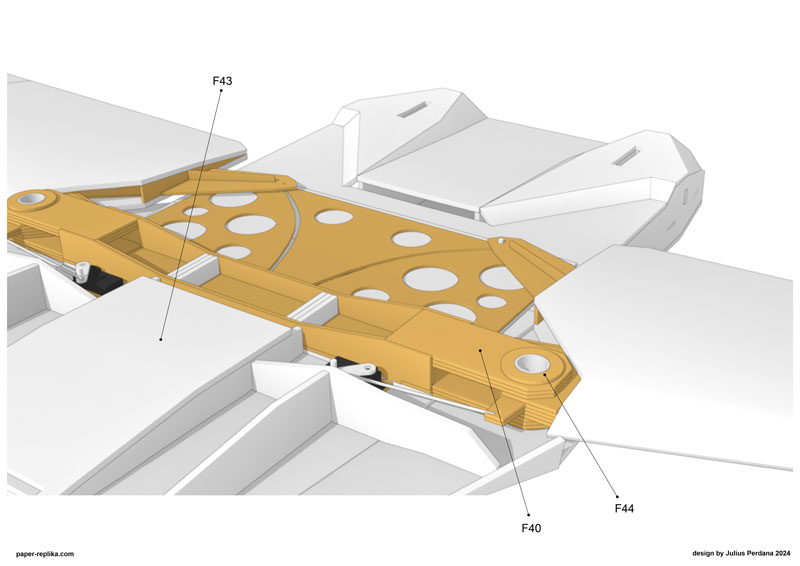

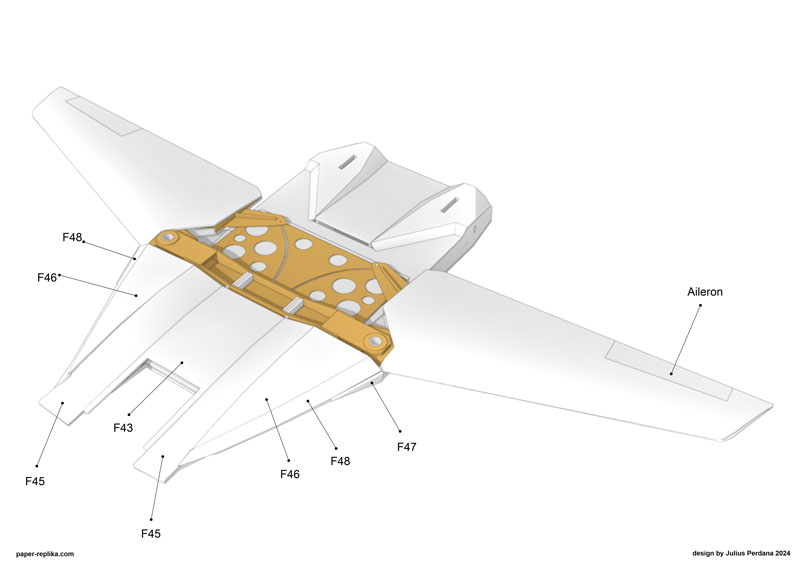

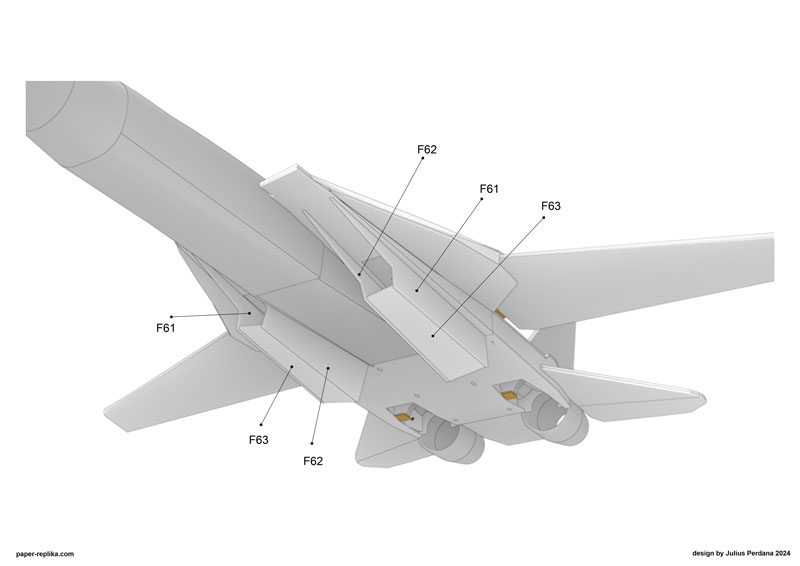

BUILD INSTRUCTIONS :



Hey everyone,

As many of you know, I've been passionate about creating free RC model plane designs and sharing them here on the website for the past 5 years. Thanks to your support, my YouTube channel has grown tremendously, and I've loved seeing all your incredible builds come to life!

However, with recent changes in ad revenue, it's become increasingly difficult to keep creating high-quality content and plans for free. To ensure I can keep bringing you the best possible designs and tutorials, I'm excited to announce a new line of premium plans!

For just $7.50, you can get access to my latest F-14 Tomcat plan, packed with DXF files for cutting Depron foam and also plywood parts.

Of course, I'll still be offering free plans and tutorials on the channel!  This new tier simply allows me to create even more content for everyone.

Thank you for your continued support!

Buy F-14 Plans on Gumroad with Credit Card or Paypal

Buy F-14 Plans using Paypal email me to This email address is being protected from spambots. You need JavaScript enabled to view it. I'll send you a Paypal Invoice.
