Another trainer type plane. I build this for my son and my daughter's friends to learn to fly an RC plane. I made it with 1500 mm wingspan because I was inspired by XFly Tasman RC Plane, I already try to fly it and thought I will build a trainer with the same size wingspan. I named this trainer plane "Dara" that means "Pigeon" in Indonesian. Also it has different means, that is a girl. Dara actually inspired by Tecnam 2010 trainer plane, but I change the wing shape and simplify the fuselage lines.
Specs :
1. Wingspan 1500 mm / 59 inches
2. Flying weight : 1530 grams/ 54 oz / 3.37 lbs
3. Wing loading : 41.8 gram/dm2 - 13.7 oz/sq.ft.
4. Wing cube loading : 6.9 (Trainer)
5. Wing Area : 36.6 dm2 / 567 sq.in.
6. CG : 6.5 cm / 2.55 inch from leading edge

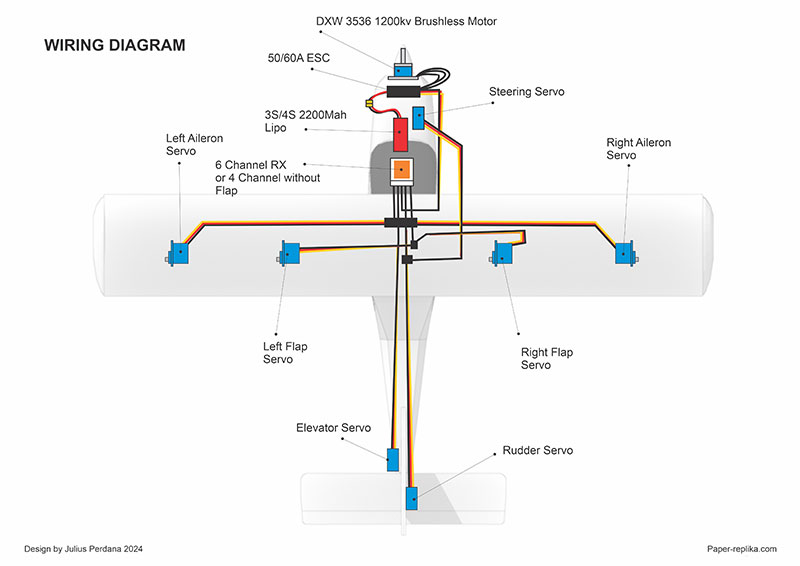

Electronics for test
- DXW 3536 1200kv Brushless motor
- 60A ESC Hobbywing Skywalker
- Battery Lipo 3S 2200mah
- Battery Lipo 4S 2200mah
- 5 x 9 gram servos (metal micro servo)
Prop :
- 10x6 props
- 50mm 3D printed spinners
Transmitter
- Jumper T16 + BetaFPV Express LRS TX module
- 5 ch BetaFPV Express LRS RX
BUILD INSTRUCTIONS
