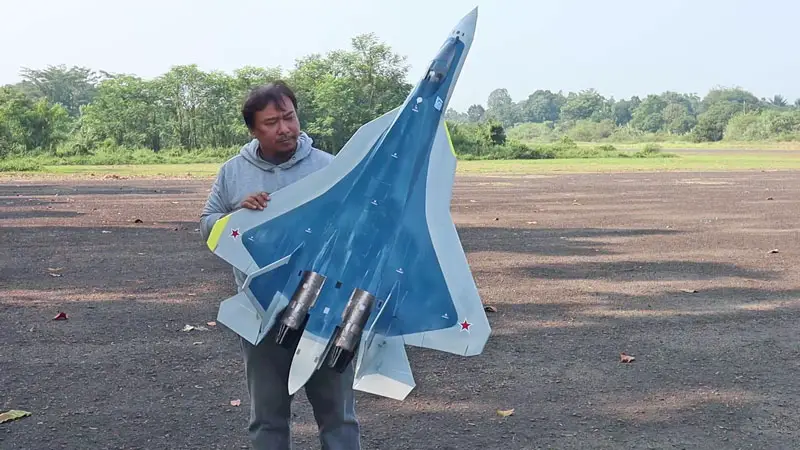

I made this Sukhoi because I already made an F-22 Raptor plans, because I think it would be interesting if I made its rival too which is Sukhoi Su-57 Felon or in Russia known as T-50 PAK FA. This model is not design specifically for neither EDF or pusher prop, I just design the model airfame that can be built with 5-6mm foam board or depron or polyfoam, without any propulsion mounting design. You have to figure out yourself, but you can see on the build video how I install a single 70mm EDF on center between the two exhaust. For this setup I use FMS 12 blades 6S 70mm EDF, with 2.6 kg thrust with 80A ESC and 6S 2200mAh Lipo, I think it's more than enough than the weight itself. I also convert it from EDF to pusher prop using DXW 3536 1200kv brushless motor, 10 inch prop, 50A ESC and 3S 2200 mAh Lipo. Both perform well, while there's some problem in the beginning, you can see it on the build video on Youtube.

Specs :
1. Wingspan 1000mm / 39.37 inches
2. Flying weight : 1028 grams/ 36.3 oz
3. Wing loading :20.4 gram/dm2 - 6.7 oz/sq.ft.
4. Wing cube loading : 2.9
5. Wing Area : 50.35 dm2 / 780 sq.in.
6. CG : 8 cm / 5.39 inch from Wing Break


Electronics for test (pusher prop)
- DXW 3536 1200kv
- Prop 10x6 (2 blades)
- 50A ESC
- Battery Lipo 4S 2200mah
- 4 x 9 gram servos (micro servo)

Electronics for test (EDF)
- FMS 70mm 12 blades 6S EDF
- 80A Predator ESC
- Battery Lipo 3S 2200mah x2 (series connection)
- 4 x 9 gram servos (micro servo)

- Jumper T16 + BetaFPV Express LRS TX module
- 10 ch BetaFPV Express LRS RX

Su-57 Felon A4 Plans

Su-57 Felon A0 Plans

Su-57 Felon A3 Decal

Su-57 Felon A4 3D Printed Parts

Su-57 Felon Build Video on Youtube
