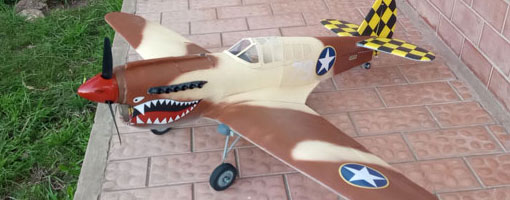

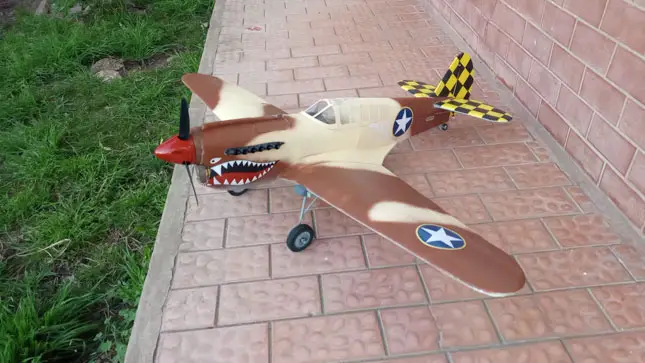

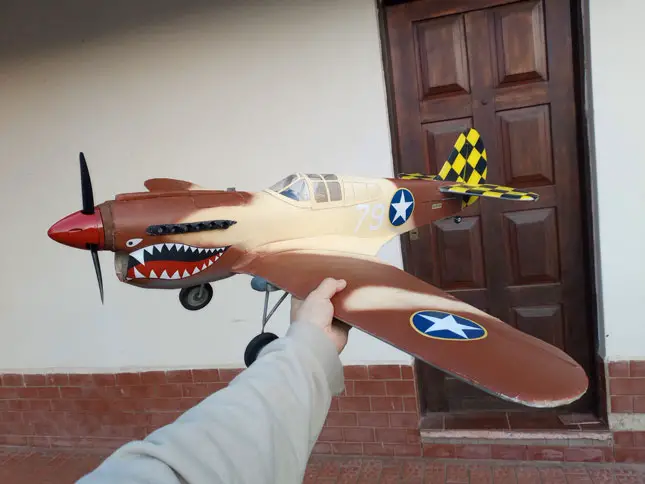

I am back making RC plane again, this time we made P-40 Warhawk RC Plane still using Depron foam as the main material. This project is a collaboration effort with my friend Lucas aka Aero Ergo from Argentina. I design the build plans and Lucas build and fly it.
Specs :
1. Wingspan 1100 mm / 43.3 inches
2. Flying weight : 1100 grams/ 38.8 oz
3. Wing loading : 49.4 gram/dm2 - 16.2 oz/sq.ft.
4. Wing cube loading : 10.5 (Aerobatic : 9 to 10)
5. Wing Area : 22.26 dm2 / 345 sq.in.
6. CG : 5.8 cm / 2.3 inch from LE (leading edge on root chord)
Electronics
- 3536 1400kv
- 60A ESC
- Battery Lipo 4S 1500mah
- 4 x 9 gram servos (micro servo)
Accessories :
- 64mm Spinner
- 80mm + 35 mm Foam Wheel
Materials :
1. 6mm Foamboard/ Depron/ Polyfoam
2. 3mm + 9mm Plywood
3. 0.3mm Mica Plastic
4. hot glue, UHU glue, CA glue
5. Packing tapes
BUILD INSTRUCTIONS ARE IN THE NEXT PAGE
P-40 Warhawk RC Plane Foam Plans A4
P-40 Warhawk RC Plane Foam Plans A0
P-40 Warhawk Decal A4
P-40 Warhawk Decal A3
Youtube Build Video
