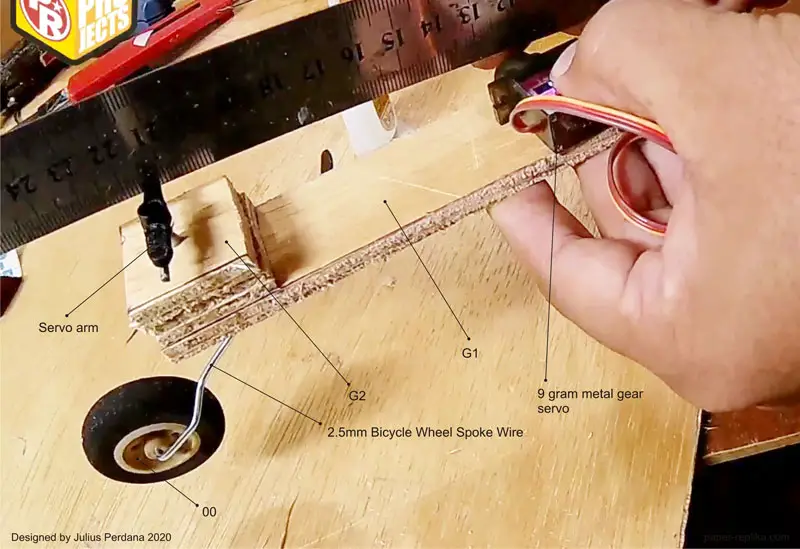

In this DC-3 build part 2 I am going to share with you how to make the horizontal stabilizer, steerable tail wheel and servo platform. I use separate servos for moving the rudder and tail wheel. They will be mixed together so they will have co-axial movement. You will need 5mm carbon tube with 100 cm length for horizontal stabilizer spars. I also use ready made plastic hinges for the elevators.
Specs :
1. Wingspan 2200mm / 87 inches
2. Flying weight : -
3. Wing loading : -
4. Wing cube loading : -
5. Wing Area : 25.2 dm2 / 391 sq.in
6. CG : -
Electronics
- 2X Turnigy 2830 1000kv brushless motor
- ESC 40A
- Battery Lipo 3S 2200mah - Li-ion 3S 3300 mah
- 4 plastic gear 9 gram servos
- 5 metal gear 9 gram servos
- Propeller : 9x6x3
Materials :
1. 5mm & 10mm Depron/ Polyfoam
2. 3mm Plywood
4. 0.3mm Mica Plastic
5. hot glue + CA glue + UHU glue
6. white packing tapes and gray packing tapes
Open the PDF file with Adobe Acrobat Reader (recommended software)
PDF security password : none
Douglas DC-3 RC plans part 2 (A4)
