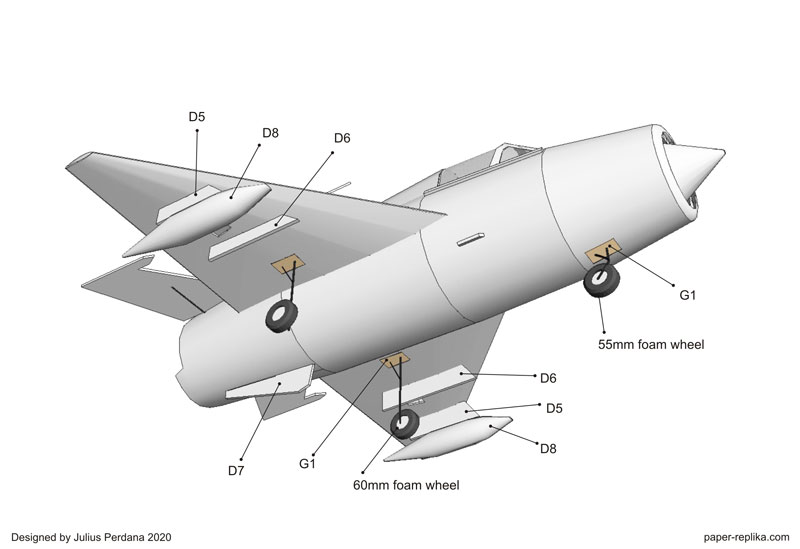

The last cartoon RC plane had surprisingly very good feedback from my audience, so I make another model. This time is Mig-21 Lancer in fatty or cartoon style. The original plans was making Spitfire, but change to Mig-21 because it won the poll on my channel's community tab. This Mig-21 is looks huge with 105 cm wingspan but only weight 1050 grams. It uses the same electronic as T-2 Buckeye. It has detachable landing gears, so you can switch mode easily on field, you can choose to take of run with wheels from ground or just tossing the plane into the air.
Specs :
1. Wingspan 1050 mm
2. Flying weight : 1170 grams/ 41.3 oz
3. Wing loading : 37.7 g/dm2 - 12.4 oz/sq.ft
4. Wing cube loading : 6.8
5. Wing Area : 31 dm2 / 481 sq.in
6. CG 31 cm from TE
Electronics
- NTM 2830 2700kv
- Propeller : 6x4
- ESC 50A
- Battery Lipo 4S 2200mah
- 3 plastic gear 9 gram servos
Materials :
1. 3 mm Depron/ Polyfoam
2. 5 mm Depron/ Polyfoam
3. 7 mm Plywood
4. Hot glue, CA glue, PVA glue
5. 3 mm, 2.5 mm bicycle wheel spoke wire
6. 1.5 mm wire
7. white packing tape / wax paper
8. Bamboo chopstick
9. 0.3, 0.5 mm Mica plastic
Open the PDF file with Adobe Acrobat Reader (recommended software)
PDF security password : none
Cartoon Mig-21 RC plans (A4)
Cartoon Mig-21 RC plans (A0)
Romanian Mig-21 Decal (A3)
Build Video and maiden flight on Youtube
