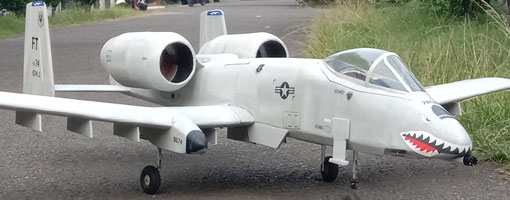

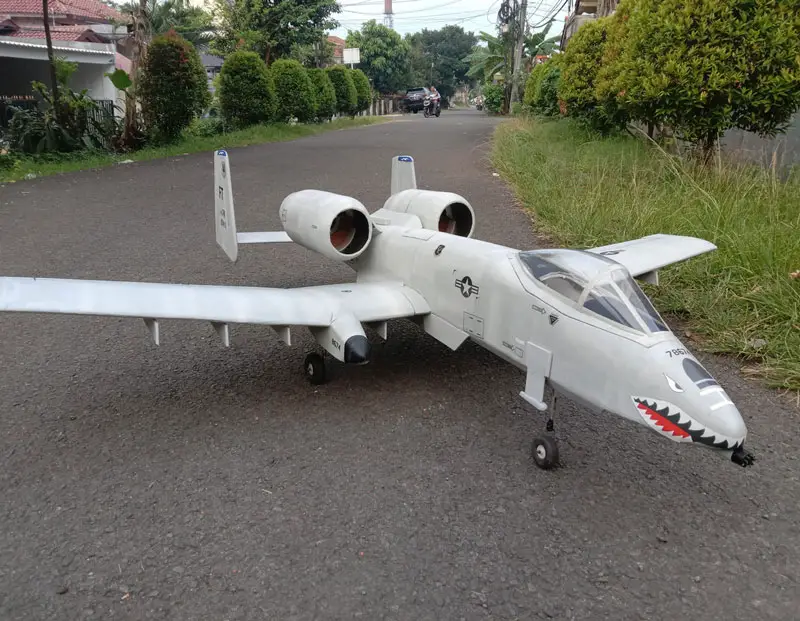

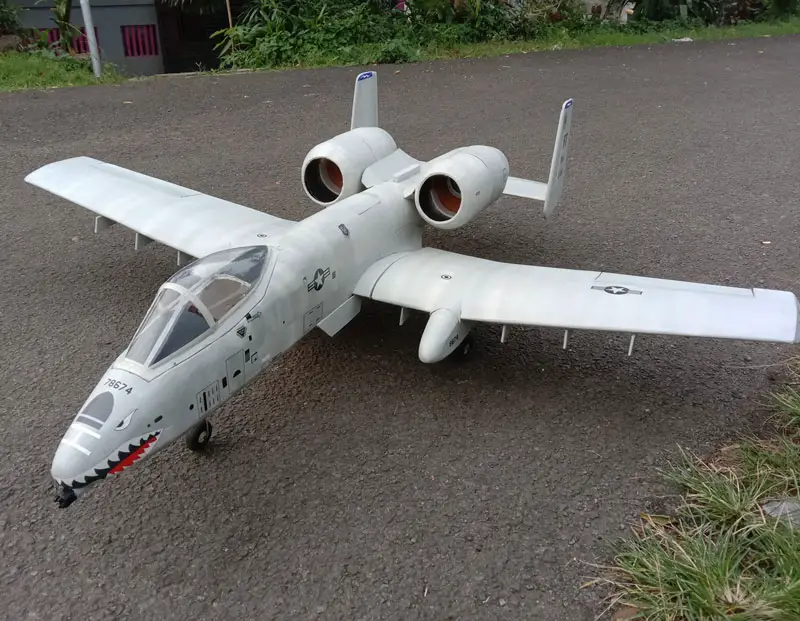

This is my second A-10 Warthog RC model, and the first one that I've completed a build video, plans, and decals for. For this build, I used 6mm Depron foam or foamboard or polyfoam. While my first A-10 used a pusher prop motor, I wanted to try using EDFs this time around. However, I've had some bad experiences with EDFs in the past, so I went with 6S that already has a powerful thrust of about 2.5 kg on each unit. But, this came with a higher price tag and more weight. In fact, this is the heaviest model I've ever built, weighing in at 3.6 kg. I also added retractable landing gear and a smoke effect for its gun.
Specs :
1. Wingspan 1700 mm / 67 inches
2. Flying weight : 3600 grams/ 127 oz
3. Wing loading : 80.4 gram/dm2 - 26.4 oz/sq.ft.
4. Wing cube loading : 12
5. Wing Area : 44.80 dm2 / 694 sq.in.
6. CG : 9 cm / 3.5 inch from leading edge
Electronics (EDF)
- 2x FMS EDF 12 blade 1900kv
- 2x 80A ESC Hobbywing Skywalker
- 4x Battery Lipo 3S 2200mah (6S setup)
- 7 x 9 gram servos (metal micro servo)
Alternative : Pusher Prop
- 2X DXW 3536 1200kv
- 2x 50A ESC
- 3S Lipo 2200 mAh X2
- 9x6x3 Prop
Smoking Effect :
- EDF 50mm
- 2S Battery 1000mah
Materials :
1. 5mm Foamboard/ Depron/ Polyfoam
2. 2mm Plywood
3. hot glue, UHU glue, CA glue
4. laminating film
5. Mica plastic 0.3mm
6. Paper card
