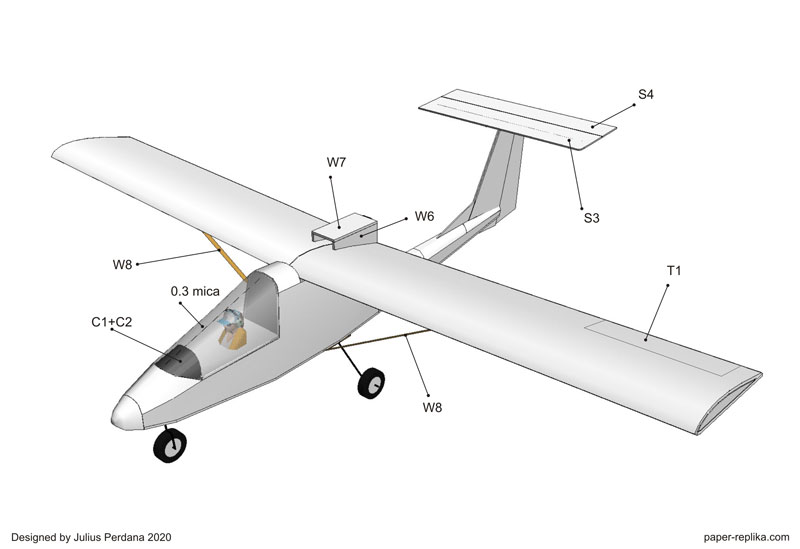

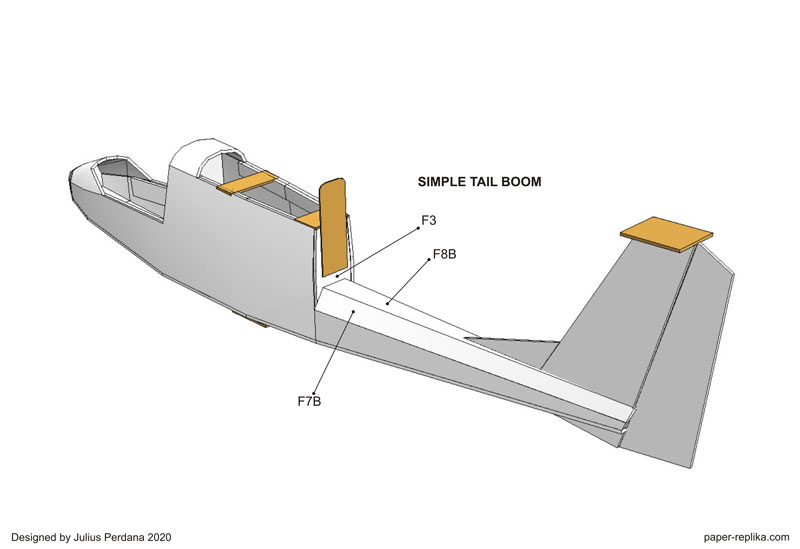

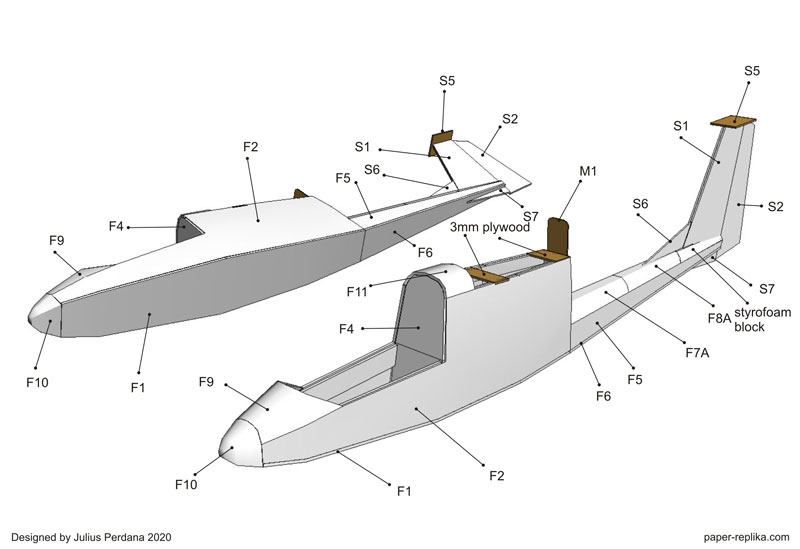

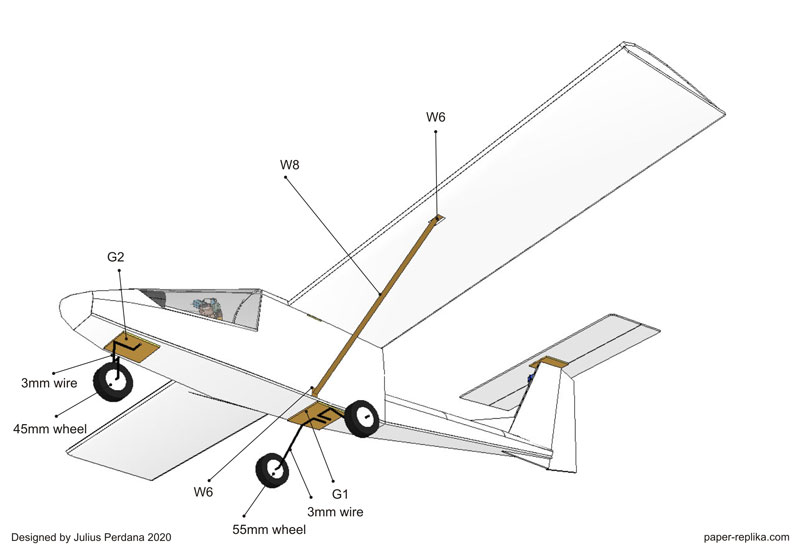

Many have requested this RC model plane, this is Sky Arrow with 1700mm wingspan. Its wing loading can be categorized as a trainer plane. It has big canopy and room for storage make it perfect for FPV platform. It can fly slow and very easy to control make it suitable for beginner's plane or trainer plane. This is a second build, the first one was the prototype has thinner airfoil and doesn't have dihedral angle on its wing. Flying weight with 3S 2200 mAh Lipo battery is around 1 kg, it still can take off with 1500 gram weight. There are 2 version of tail booms that you can choose. The plans comes in A4 and A0 size format, but the decal with A3 format.
Specs :
1. Wingspan 1700mm / 67 inches
2. Flying weight : 1050 grams/ 37 oz
3. Wing loading : 27.4 g/dm2 - 9 oz/sq.ft
4. Wing cube loading : 4.4
5. Wing Area : 38.3 dm2 / 594 sq.in
6. CG : 5.75 cm from LE
Electronics
- Turnigy 2830 1000kv brushless motor
- ESC 40A
- Battery Lipo 3S 2200mah - Li-ion 3S 3300 mah
- 4 plastic gear 9 gram servos
- Propeller : 9x5x3
Materials :
1. 5mm & 10mm Depron/ Polyfoam
2. 3mm Plywood
4. 0.3mm Mica Plastic
5. hot glue + CA glue + UHU glue
6. white packing tape
Open the PDF file with Adobe Acrobat Reader (recommended software)
PDF security password : none
Sky Arrow plans (A4)
Sky Arrow plans (A0)
Sky Arrow decal (A3)
Build Video and maiden flight on Youtube
