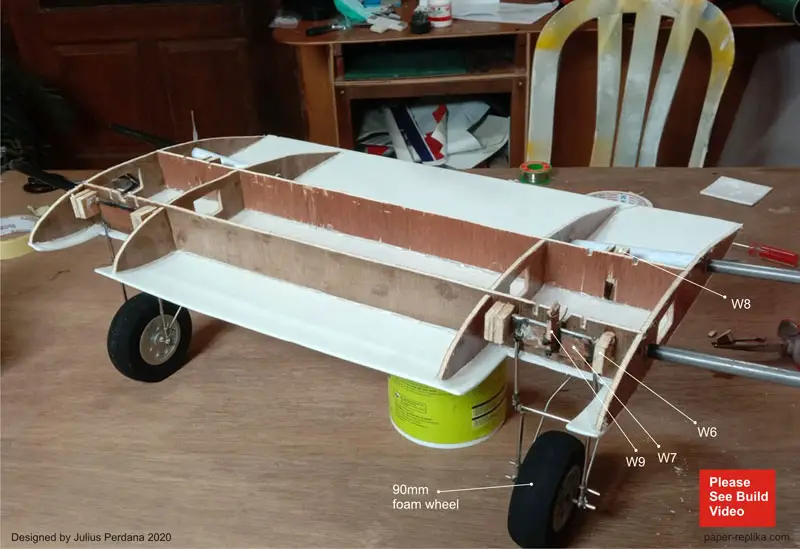

I think this step is the hardest part of the entire series of building this RC Douglas DC-3. It took 2 weeks to research and trial and error making a working retractable landing gear. I'm very satisfied with result and kind of relieved because the hardest challenge already successfully passed. The rest will be easy, installing motor, complete the wing, adding servos, covering and decal.
Specs :
1. Wingspan 2200mm / 87 inches
2. Flying weight : -
3. Wing loading : -
4. Wing cube loading : -
5. Wing Area : 25.2 dm2 / 391 sq.in
6. CG : -
Electronics
- 2X Turnigy 2830 1000kv brushless motor
- ESC 40A
- Battery Lipo 3S 2200mah - Li-ion 3S 3300 mah
- 4 plastic gear 9 gram servos
- 5 metal gear 9 gram servos
- Propeller : 9x6x3
Materials :
1. 5mm & 10mm Depron/ Polyfoam
2. 3mm Plywood
4. 0.3mm Mica Plastic
5. hot glue + CA glue + UHU glue
6. wax paper
Open the PDF file with Adobe Acrobat Reader (recommended software)
PDF security password : none
Douglas DC-3 RC plans part 3 (A4)
Douglas DC-3 RC plans part 3 (A0)
Build Video and maiden flight on Youtube
