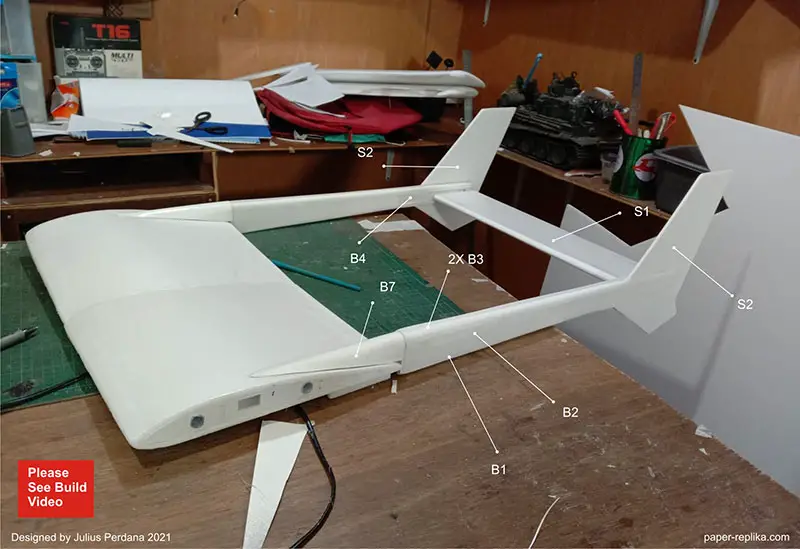

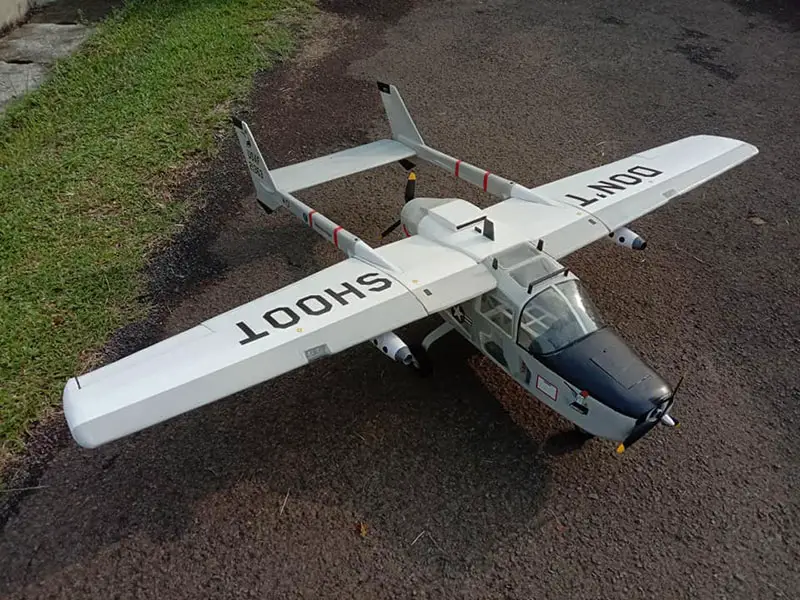

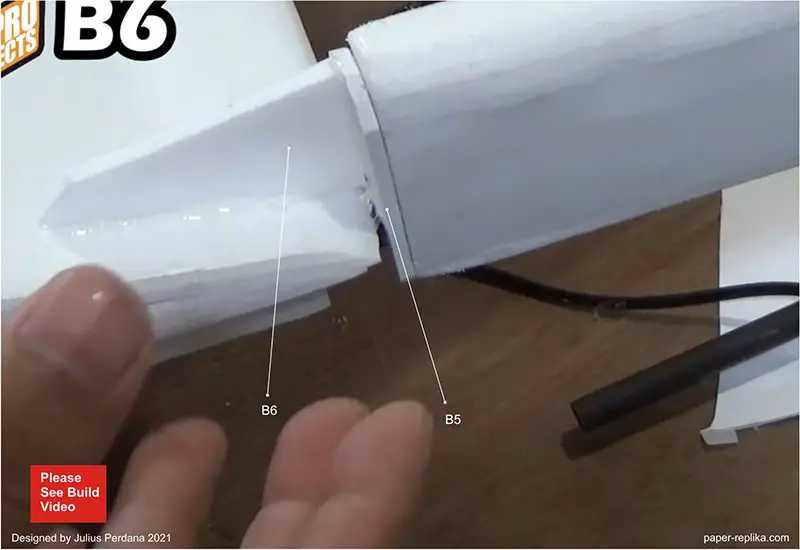

In the past I already made this type of model plane 2 times before, but all of them only use pusher prop motor. This is the first time I'm using twin motor for Cessna 337 Skymaster. I also designed the papercraft or paper model version of it, it's a commision project so I don't have the template for free share. But using the 3D model for the papercraft version I modify it into this RC model plane plans. It should have been a smooth process, but I made mistake on installing the tail boom. So I need to re-install the tail boom to get it right and fly good. Also I have learned that using PVC foamboard also a mistake if using for key constructions that need rigidness and strength, so the next episode I will back using 3mm plywood.

Specs :

1. Wingspan 1800mm / 70.8 inches

2. Flying weight : 2000 grams/ 70.5 oz

3. Wing loading :42.8 gram/dm2 - 14 oz/sq.ft.

4. Wing cube loading : 6.3

5. Wing Area : 46.74 dm2 / 724 sq.in.

6. CG : 9 cm from LE



Electronics

- 2X DXW 3536 1200kv Brushless motor

- 2X 50A ESC

- Battery Lipo 3S 2200mah 70C

- 1 metal gear 9 gram servos (micro servo)

- 3 9 gram servos (micro servo)



Materials :

1. 5mm  Foamboard/ Depron/ Polyfoam

2. 3mm Plywood / PVC foam board

3. 0.5mm Mica Plastic

4. hot glue, UHU glue, CA glue

5. packing tape/ laminating film



Open the PDF file with Adobe Acrobat Reader (recommended software)

PDF security password : none

Cessna 337 Skymaster 1800mm RC plans (A4)

Cessna 337 Skymaster 1800mm RC plans (A0)

Decal FAC O-2A Skymaster (A3)

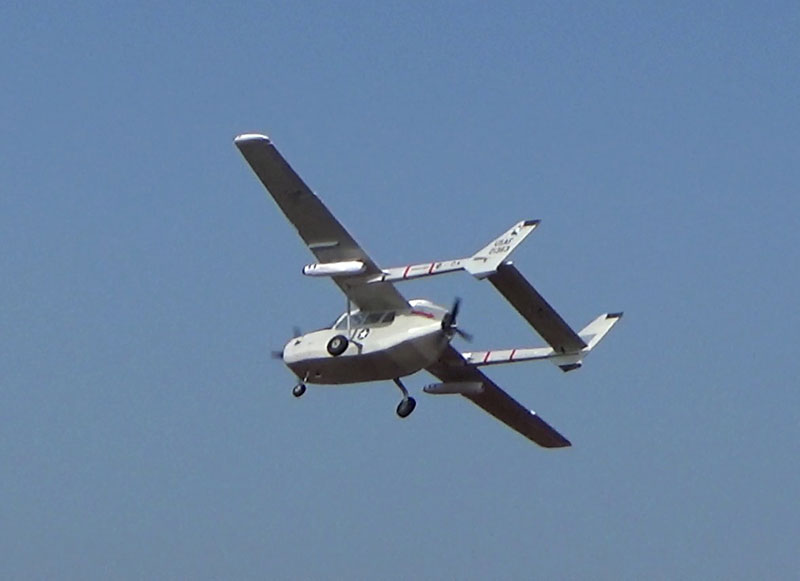

Build Video and maiden flight on Youtube
